Alcatel BE1, BE2, BE3, BE4, DB, 30x, 50x, 70x (One Touch Easy DB, Club DB, MAX DB) cell phone pinout

connector or cable wiring scheme

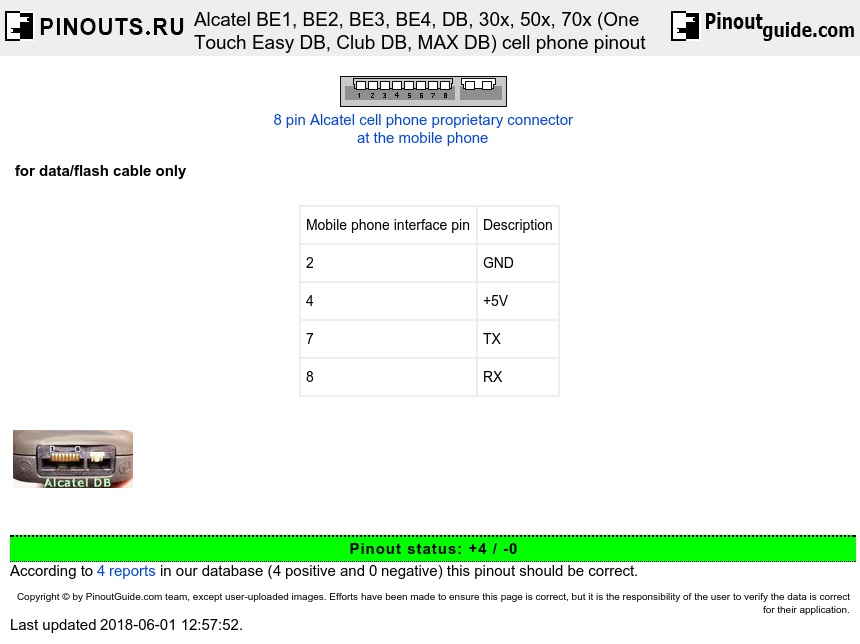

8 pin Alcatel cell phone custom connector layout

8 pin Alcatel cell phone custom connector
at the mobile phone

Mobile phone interface pin	Description
2	GND
4	+5V
7	TX
8	RX
